Impact Charpy

Impact Charpy

Price range: $12.25 through $19.50

Add to Quote

To save your quotes for future reference, register and log in.

Register or Login
SKU: Impact_Specimen_CHARPY Category:
See All Specimen in Classic List View

CAT. NO

GRADE

CONDITION

PRICE

STEEL
SIAC18 .375 C1018 CF 12.25
SIAC18 .394 C1018 CF 14.50
SIAH36 .375 ASTM-A36 HR 12.25
SIAH36 .394 ASTM-A36 HR 15.75
SIAC45 .375 C1045 CF 1275
SIAC45 .394 C1045 CF 14.75
SIAH45 .375 C1045 HR 16.00
SIAH45 .394 C1045 HR 18.00
SIAC130 .375 4130 CF 12.75
SIAC130 .394 4130 CF 15.50
SIAC140 .375 4140 CF 12.75
SIAC140 .394 4140 CF 14.75
SIAC95 .375 C1095 CFW1 14.75
SIAC95 .394 C1095 CFW1 17.50
SIAC01 .375 Oil Hard’ng Steel CF 15.00
SIAC01 .394 Oil Hard’ng Steel CF 18.00

STAINLESS STEEL
SS104 .375 304 16.00
SS104 .394 304 18.00

CAST IRON
CIA40 .375 Gray-20 18.50
CIA40 .394 Gray-20 19.50

ALUMINUM
AIA224 .375 2024 T-351 14.25
AIA224 .394 2024 T-351 17.00
AIA615 .375 6061 T-651 14.25
AIA615 .394 6061 T-651 17.50
AIA75 .375 7075 T-651 14.00
AIA75 .394 7075 T-651 16.00

BRASS
BIA360 .375 F.C. BRASS 360 14.00
BIA360 .394 F.C. BRASS 360 16.00

Specimen Markings

Steel
Hot Rolled Black
Cold Finish White
Stainless Steel
304 White/Black
316 Black
Brass
Free Cutting White
Naval Hard Blue
Cast Iron
Gray 20 Copper
Ductile 60 White
Plastic
Acrylic-Cast Red
Polyethylene Hi-Density Green
Nylon 101 Blue
Polyvinyle Chloride Black
Aluminum
2011-T3 White
2017-T351 Blue
2024-T351 Red
3003-H14 Orange
6061-T651 Green
6063-T5 Brown
7075-T651 Yellow
See All Specimen Markings
Material

Aluminum, Brass, Cast Iron, Stainless Steel, Steel
Grade

2024, 304, 4130, 4140, 4340, 6061, 7075, ASTM-A36, C1018, C1045, C1095, F.C. BRASS, Gray-20, Oil Hard'ng Steel
Condition

360, CF, CFW1, HR, NA, T-351, T-651
Overall Width

.375, .394

MATERIAL LIST
The following list of materials are those which are found within my product line only. The figures used are those from almost any metal distributor throughout the U.S.. They should only be used as a benchmark for that particular material. Orders that require the specific test results, referred to as the HEAT LOT, can be provided on special order for an additional cost.
MATERIAL TENSILE YIELD % ELOIGN.@72'F

STEEL
C1018 CF 82,000 70,000 20
A36 HR 59,000 36,000 23
C1045 CF 103,000 90,000 14
C1045 HR 98,000 59,000 24
C1095 HR 142,000 83,000 18
C1095 CF W1
4130 CF 98,000 87,000 21
4140 CF 102,000 90,000 18
4140 HR 89,000 62,000 26
4150 CF 140,000 120,000 15
4340 CF 111,000 99,000 16
8620 CF 102,000 85,000 22

STAINLESS STEEL(austenitic chrome-nickel)
304 85,000 35,000 55
316 85,000 35,000 60

BRASS
FREE CUTTING -360 58,000 42,000 20
NAVAL -464 63,000 35,000 30

COPPER
ALLOY 110 48,000 40,000 16

ALUMINUM
2011-T3 55,000 43,000 15
2017-T351 62,000 40,000 22
2024-T351 68,000 47,000 20
3003-H32 31,000 25,000 10
6061-T651 45,000 40,000 12
7075-T651 83,000 73,000 11

MAGNESIUM
AZ31B 38,000 28,000 15

TITANIUM
6AL4V Ann. 145,000 131,600 12.5

CAST IRON
GRAY-20 (A48) 20,/25 NA NA
DUCTILE-60 (A536) 60,/65 45,000 12

PLASTIC (ROUNDS)
ACRYLIC CAST 8-10,000   2.0-7,0
POLYETHYLENE HI 3,1-5,500   200-1000
POLYVINYLE - 6,200-7,000
CHLORIDE 5,-9,000   2.0-40
NYLON 8,-12,000   60-300

POLYMERS (injection molded resins)
POLYCARBONITE 300 10,500   150
POLYSTYRENE 7,600   2,2
POLYETHYLENE 3,700   700

THERMOPLASTIC
RUBBER G7720 "kraton" 5.0-7.3   300

PLASTIC
IMPACTS (charpy - izod)
ACRYLIC CAST 9,000 .3-.4 2
POLYETHYLENE HI 4,600 .5-2.0 65
POLYVINYLE CHOLRIDE (PVC) 7,000 .4-20.0 25
NYLON 101 12,400 1.0-2.0 90

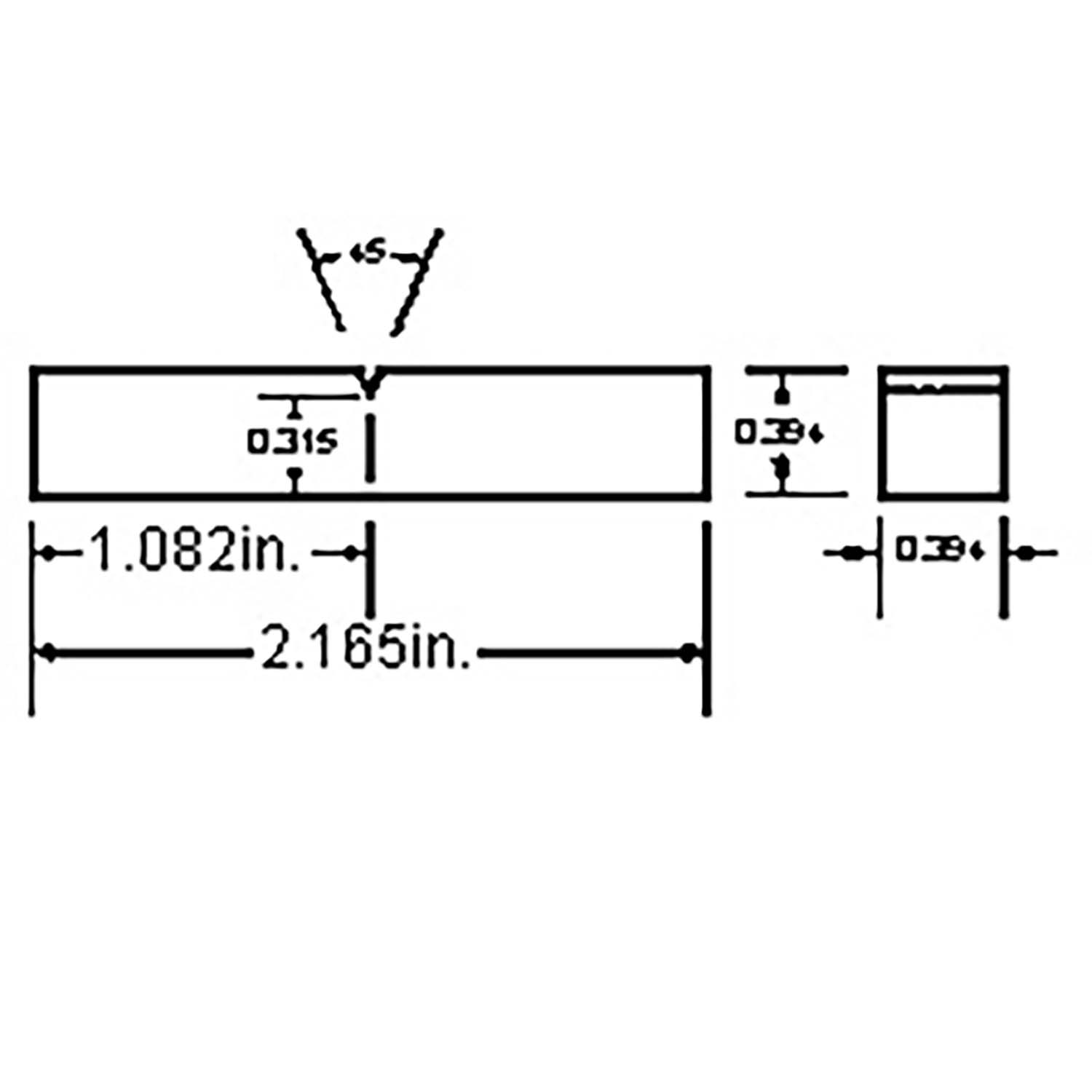

IMPACT TEST SPECIMENS
PLATE material: The lengths of specimens are in the rolling direction of the plate. The "V" groove is perpendicular to the rolling direction and is across the face of the plate. C1045 HR
All specimens with W1 designations are classified as a Tool Steel and are in the Water Hardening class. C1095
All specimens with 01 designations are classifiend as an Oil Hardening AISI type 01. C1095
Their chemical compositions are as follows:
  **Tool Steel W1 *** Oil Hardening 01
Carbon 0.95/1.05 0.80/0.95
Manganese 0.30/0.40 1.00/1.25
Silicon 0.10/0.25 0.20/0.40
Phosphorus 0.025 0.020 MAX
Sulfur 0.025 0.020 MAX
Chromium 0.15 0.40/0.60
Vanadium 0.10 0.10/0.20
Tungsten 0.15 0.40/0.60
Molybdenium 0.10 NONE
