Specimen Catergories in Classic spreadsheet view

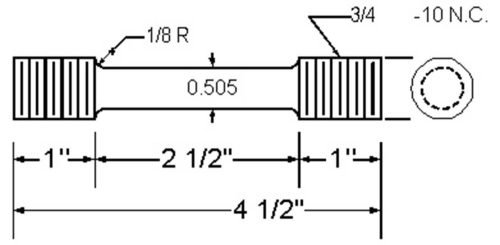

FOR TENSILE TESTING



CAT. NO

GRADE

CONDITION



STEEL
STC18 C1018 CF
STH36 ASTM-A36 HR
STC45 C1045 CF
STH45 C1045 HR
STC95 C1095 WI-SPHEROIDIZED
STC130 4130 CF
STC140 4140 CF
STH140 4140 HR
STC340 E4340 CF

STAINLESS STEEL
SST316 316
SST304 304

CAST IRON
CIT40 Gray-20

ALUMINUM
AT211 2011 T3 (11s-T3)
AT244 2024 T351 (24s-T4)
AT661 6061 T651 (61s-T6)
AT775 7075 T651 (75s-T6)

MAGNESIUM
MT 31 Magnesium AZ31-B

BRASS
BTH464 Naval Brass 464
BTH360 Free Cutting 360

COPPER
CTH110 Copper 110

PLASTIC
PTA101 Acrylic, cast .357 Ga. Diam
PTA010 Acrylic, cast .505 Ga. Diam
PTN001 Nylon Type 101
PTP012 Polyethylene Hi-Density
PTPV014 Polyvinyl Chloride, Gray

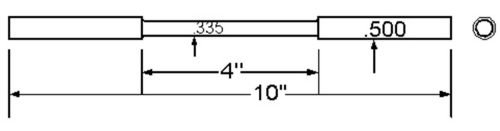

FOR TENSILE TESTING CONT.

CAT. NO

GRADE

CONDITION



STEEL
STS 18-10 C1018 CF
STS 36-10 ASTM-A36 HR
STS 45-10 C1045 CF
STS 140-10 4140 CF

CAST IRON
CT 40-10 Gray-20

ALUMINUM
ATS 211-10 2011 T351 (11s-T3)
ATS 217-10 2017 T351 (17s-T4)
ATS 244-10 2024 T351
ATS 661-10 6061 T651
ATS 775-10 7075 T651

MAGNESIUM
MTS-10 AZ31-B

BRASS
BTS 360-10 Free Cutting 360

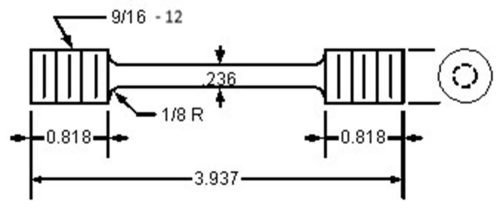

TENSION & IMPACT

CAT. NO

GRADE

CONDITION



STEEL
SIVC18 C1018 CF
SIVH36 ASTM-A36 HR
SIVC45 C1045 CF
SIVC130 4130 CF
SIVC140 4140 CF
SIVH140 4140 HR
SIVC340 4340 CF
SIVC95 C1095 WI-SPHEROIDIZED
SIVC620 8620 CF

ALUMINUM
AIV217 2017 T351
AIV244 2024 T351
AIV661 6061 T-651
AIV775 7075 T-651

BRASS
BIV360 Free Cutting 360

CAST IRON
CIV40 Gray-20

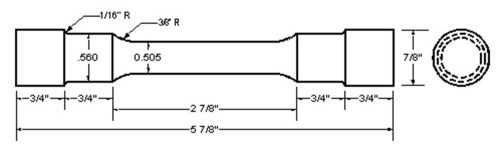

HEADED TENSILE



CAT. NO

GRADE

CONDITION



STEEL
STHC18 C1018 CF
STHC45 C1045 CF
STHC95 TOOL STEEL WI-SPHEROIDIZED

ALUMINUM
ATH 244 2024 T351
ATH 661 6061 T651

BRASS
BTFH360 Free Cutting 360

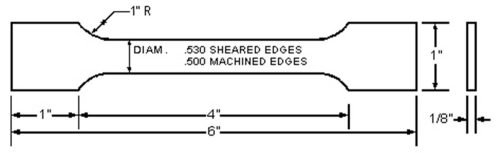

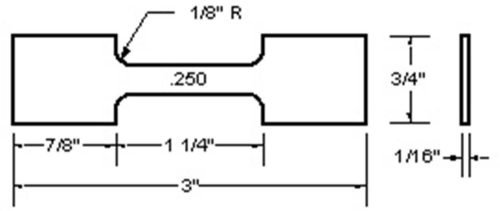

TENSILE-FLAT

CAT. NO

GRADE

CONDITION*


*Note: Machined versions are no longer available

STEEL
TSF10S C1010 SHEARED
TSF50S C1050 HR ANN SHEARED
TSF130S 4130 HR ANN SHEARED

ALUMINUM
TAF224S 2024-T351 SHEARED
TAF303S 3003-H32 SHEARED
TAF661S 6061-T6 SHEARED
TAF775S 7075-T6 SHEARED

BRASS
TBF360S 260 70/30 NOT360 SHEARED

COPPER
TCF110S COPPER SHEARED

PLASTIC
TAF01 ACRYLIC-CAST
TNF011 NYLON-101
TPF012 POL-HI
TPVF013 PVC



TENSILE-FLAT (LEAD)

CAT. NO

GRADE

CONDITION



LEAD
TLF.06 LEAD 2.5LB/FT²
TLF.09 LEAD 4.0LB/FT²

PLASTIC
TPF011 POLY-HI

TENSILE-FLAT

CAT. NO

GRADE

CONDITION



STEEL
SFT10 C1010 CF

COPPER
SFT110 COPPER 110 1/2 HARD

BRASS
SFB 70/30 BRASS 70/30

ALUMINUM
SFA661 6061 T651
SFA224 2024 T351
SFA775 7075 T6

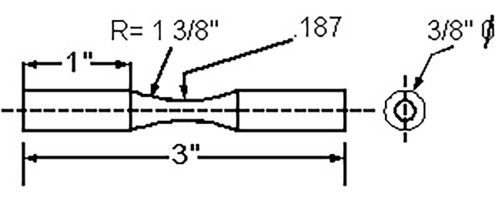

FATIGUE SPECIMENS
3/8″ Round x 3″ Long
1-3/8″ Radius w/ 3/16″ Diameter

CAT. NO

GRADE

CONDITION



STEEL
SSFR18 C1018 CF
SSFR36 A36 HR
SSFR45 C1045 CF
SSFR95 C1095 CF W1
SSFR130 4130 CF
SSFR140 4140 CF

BRASS
SBFR360 Free Cutting 360 360 1/2 HARD

ALUMINUM
SAFR224 2024 T351
SAFR661 6061 T651
SAFR775 7075 T651

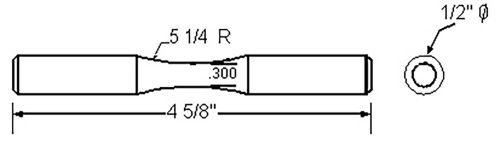

FATIGUE TESTING

CAT. NO

GRADE

CONDITION



STEEL
SFR18 C1018 CF
SFR36 A36 HR
SFR45 C1045 CF
SFR140 4140 CF

BRASS
BFR360 Free Cutting 360

ALUMINUM
AFR244 2024-T351
AFR661 6061-T651
AFR775 7075-T651

CAST IRON
CFR40 GRAY 40

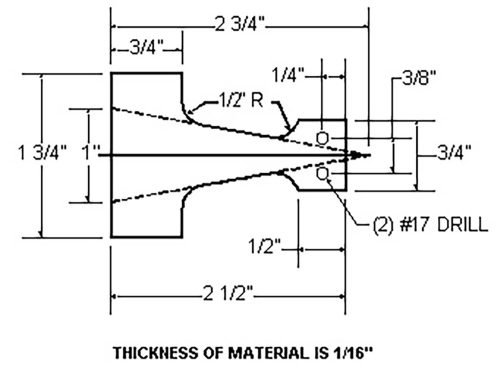

FOR FATIGUE TESTING

CAT. NO

GRADE

CONDITION



STEEL
SFA10 C1010 CF
SFA95 C1095

ALUMINUM
AFA224 2024-T4

BRASS
BFA360 Free Cutting 360

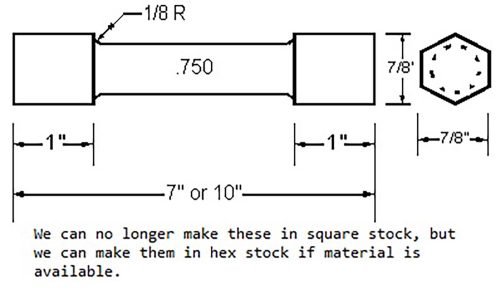

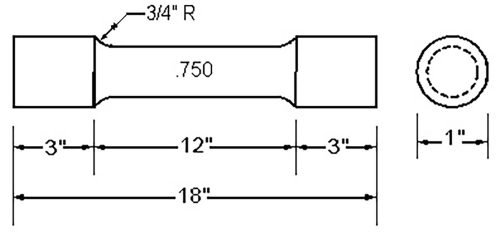

TORSION



CAT. NO

GRADE

CONDITION



STEEL
STOC18-7 C1018 CF
STOH36-7 ASTM-A36 HR
STOC18-10 C1018 CF
STOH36-10 ASTM-A36 HR
STOC45-7 C1045 CF
STOH45-7 C1045 HR
STOC45-10 C1045 CF
STOH45-10 C1045 HR

CAT. NO

GRADE

CONDITION



STEEL
STCT18 C1018 CF
STHT36 ASTM-A36 HR
STCT45 C1045 CF
STHT45 C1045 HR
STCT140 4140 CF
STHT340 4340 CF

ALUMINUM
ATC244 2024 T351
ATC661 6061 T651

CAST IRON
CITT40 Gray-20

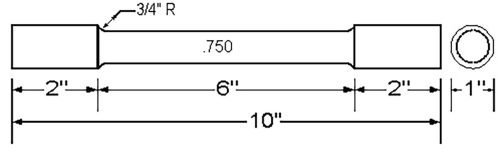

TORSION SPECIMEN
1″ ROUND X 10″ LONG

CAT. NO

GRADE

CONDITION



STEEL
STOR18-10 C1018 CF
STOR36-10 A36 HR
STORC45-10 C1045 CF
STORH45-10 C1045 HR
STORC140-10 4140 CF
STORC140-10 4140 HR
STORC340-10 4340 CF

ALUMINUM
ATOR244-10 2024-T351 (24s-T4)
ATOR616-10 6061-T651 (61s-t6)
ATOR75-10 7075-T651 (75s-T6)

CAST IRON
CTOR40-10 Gray-20

NOTCHED BAR IMPACT TESTING OF METALLIC MATERIALS (E 23)

CHARPY



CAT. NO

MATERIAL

CONDITION



STEEL
SIAC18 .375 C1018 CF
SIAC18 .394 C1018 CF
SIAH36 .375 ASTM-A36 HR
SIAH36 .394 ASTM-A36 HR
SIAC45 .375 C1045 CF
SIAC45 .394 C1045 CF
SIAH45 .375 C1045 HR
SIAH45 .394 C1045 HR
SIAC130 .375 4130 CF
SIAC130 .394 4130 CF
SIAC140 .375 4140 CF
SIAC140 .394 4140 CF
SIAC340 .375 4340 CF
SIAC340 .394 4340 CF
SIAC95 .375 C1095 CFW1
SIAC95 .394 C1095 CFW1
SIAC01 .375 Oil Hard’ng Steel CF
SIAC01 .394 Oil Hard’ng Steel CF

STAINLESS STEEL
SS104 .375 304
SS104 .394 304

CAST IRON
CIA40 .375 Gray-20
CIA40 .394 Gray-20

ALUMINUM
AIA224 .375 2024 T-351
AIA224 .394 2024 T-351
AIA615 .375 6061 T-651
AIA615 .394 6061 T-651
AIA75 .375 7075 T-651
AIA75 .394 7075 T-651

BRASS
BIA360 .375 F.C. BRASS 360
BIA360 .394 F.C. BRASS 360

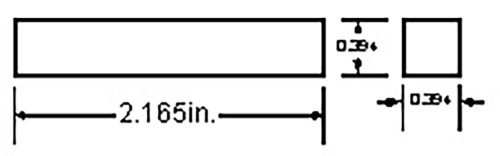

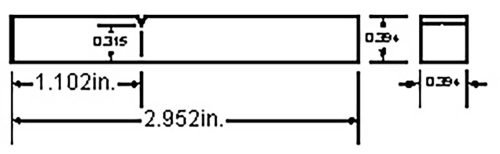

IZOD

CAT. NO

GRADE

CONDITION



STEEL
SIDC18 .375 C1018 CF
SIDC18 .394 C1018 CF
SIDH36 .375 ASTM-A36 HR
SIDH36 .394 ASTM-A36 HR
SIDC45 .375 C1045 CF
SIDC45 .394 C1045 CF
SIDH45 .375 C1045 HR
SIDH45 .394 C1045 HR
SIDC130 .375 4130 CF
SIDC130 .394 4130 CF
SIDC140 .375 4140 CF
SIDC140 .394 4140 CF
SIDC340 .375 4340 CF
SIDC340 .394 4340 CF
SIDC195 .375 C1095 CFW1
SIDC195 .394 C1095 CFW1

ALUMINUM
AID224 .375 2024 T351
AID224 .394 2024 T351
AID616 .375 6061 T651
AID616 .394 6061 T651
AID75 .375 7075 T651
AID75 .394 7075 T651

BRASS
BID360 .375 F.C. BRASS 360
BID360 .394 F.C. BRASS 360

CAST IRON
CID 40 .375 Gray-20
CID 40 .394 Gray-20

BLANKS

CAT. NO

GRADE

CONDITION



STEEL
SICC18 .375 C1018 CF
SICC18 .394 C1018 CF
SICH36 .375 ASTM-A36 HR
SICH36 .394 ASTM-A36 HR
SICC45 .375 C1045 CF
SICC45 .394 C1045 CF
SICH45 .375 C1045 HR
SICH45 .394 C1045 HR
SICC130 .375 4130 CF
SICC130 .394 4130 CF
SICC140 .375 4140 CF
SICC140 .394 4140 CF
SICH140 .375 4140 HR
SICH140 .394 4140 HR
SICC340 .375 4340 CF
SICC340 .394 4340 CF
SICC95 .375 C1095 CFW1
SICC95 .394 C1095 CFW1

ALUMINUM
AIC224 .375 2024 T351
AIC224 .394 2024 T351
AIC616 .375 6061 T651
AIC616 .394 6061 T651
AIC75 .375 7075 T651
AIC75 .394 7075 T651

STAINLESS STEEL
SSC304 .375 304 S.S.
SSC304 .394 304 S.S.

PLASTIC IMPACT SPECIMENS

Charpy 1/2″ Square X 5″ Long

CAT. NO

GRADE

CONDITION


PCAC01 ACRYLIC CAST
PCNY-02 NYLON 101
PCPOL-03 POLY HI
PCPVC-04 PVC

Izod 1/2″ Square X 2 1/2″ Long

CAT. NO

GRADE

CONDITION


PIAC-01 ACRYLIC CAST
PINY-02 NYLON 101
PIPOL-03 POLY HI
PIPVC-04 PVC

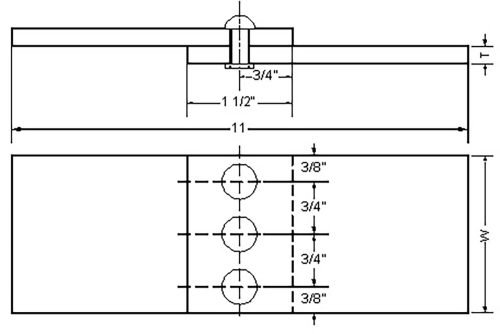

FOR TESTING RIVETED JOINTS



CAT. NO

RIVET

GRADE



STEEL
RIV2-1 2@ 1/4 1 1/2 X 1/8
RIV2-3 2@ 3/8 1 1/2 X 1/8
RIV2-5 2@ 3/8 1 1/2 X 1/4
RIV3-5 3@ 3/8 2 1/2 X 1/4

CAT. NO

RIVET

GRADE



STEEL
RIV4-1 4@ 1/4 1 1/2 X 1/8
RIV4-3 4@ 1/4 1 1/2 X 1/4
RIV4-4 4@ 3/8 1 1/2 X 1/8
RIV4-6 4@ 3/8 1 1/2 X 1/4
RIV6-3 6@ 1/4 2 1/2 X 1/4
RIV6-6 6@ 3/8 2 1/2 X 1/4

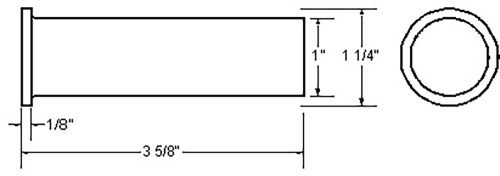

FOR JOMINY TESTING

CAT. NO

GRADE

CONDITION



STEEL
SJC18 1018 CF
SJC45 1045 CF
SJC95 1095 W1 Tool Steel
SJC130 4130 CF
SJC140 4140 CF
SJC340 4340 CF
SJC620 8620 CF

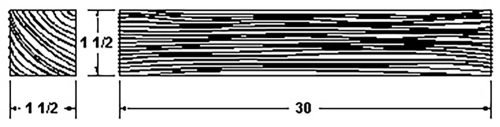

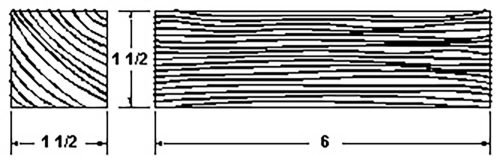

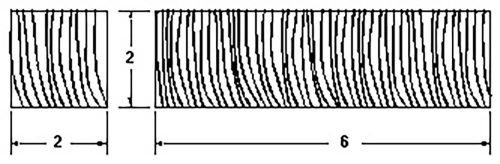

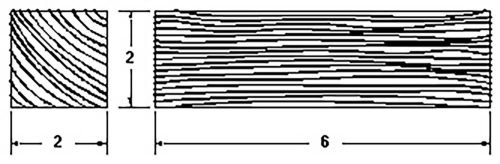

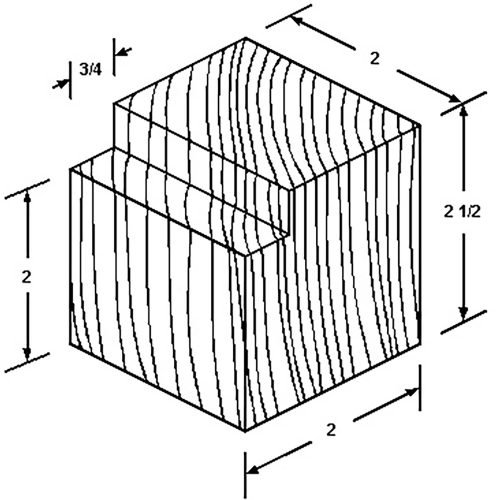

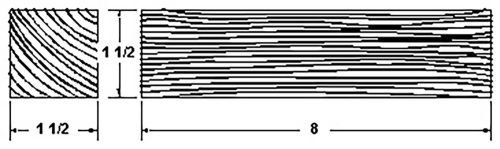

WOOD SPECIMENS

CAT. NO

GRADE

CONDITION



WOOD
W30-2DF Douglas Fir
W30-2PP Ponderosa Pine

CAT. NO

GRADE

CONDITION



WOOD
W30-1.5DF Douglas Fir
W30-1.5PP Ponderosa Pine

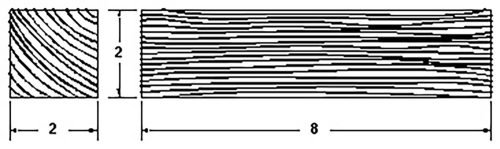

CAT. NO

GRADE

 CONDITION
WOOD
W8-2DF Douglas Fir
W8-2PP Ponderosa Pine

CAT. NO

GRADE

CONDITION



WOOD
W8-1.5DF Douglas Fir
W8-1.5PP Ponderosa Pine

CAT. NO

GRADE

CONDITION



WOOD
WV6-2DF Douglas Fir
WV6-2PP Ponderosa Pine



CAT. NO

GRADE

CONDITION



WOOD
WV6-1.5DF Douglas Fir
WV6-1.5PP Ponderosa Pine

CAT. NO

GRADE

CONDITION



WOOD
W6-2DF Douglas Fir
W6-2PP Ponderosa Pine

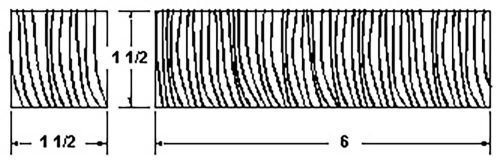

CAT. NO

GRADE

CONDITION



WOOD
W6-1.5DF Douglas Fir
W6-1.5PP Ponderosa Pine



CAT. NO

GRADE

CONDITION



WOOD
W2-2DF Douglas Fir
W2-2PP Ponderosa Pine

CAT. NO

GRADE

CONDITION



WOOD
W18-8DF Douglas Fir
W18-8PP Ponderosa Pine

CAT. NO

GRADE

CONDITION



WOOD
W1-9DF Douglas Fir
W1-9PP Ponderosa Pine

We manufacture hundreds of different special specimens for many of our customers. If you need a specific part that you do not see in our catalog, please contact us and we will be happy to provide you with a quote. Most of our specials are priced similarly to our standard parts.
